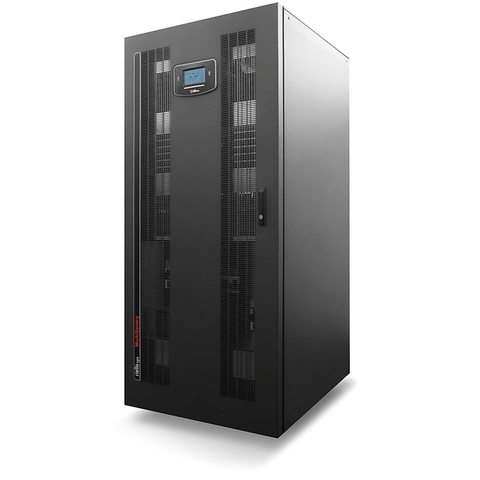

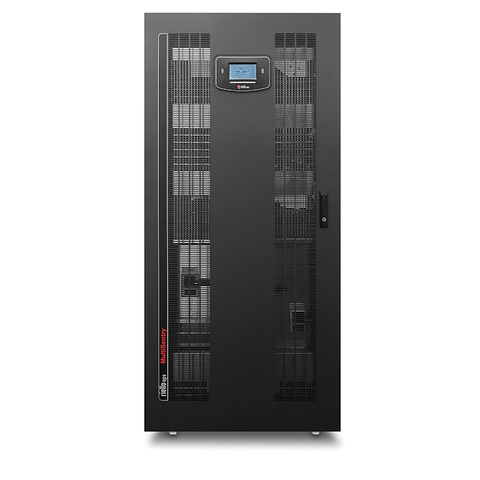

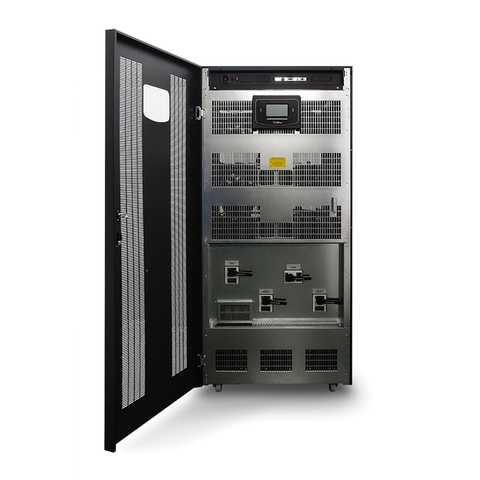

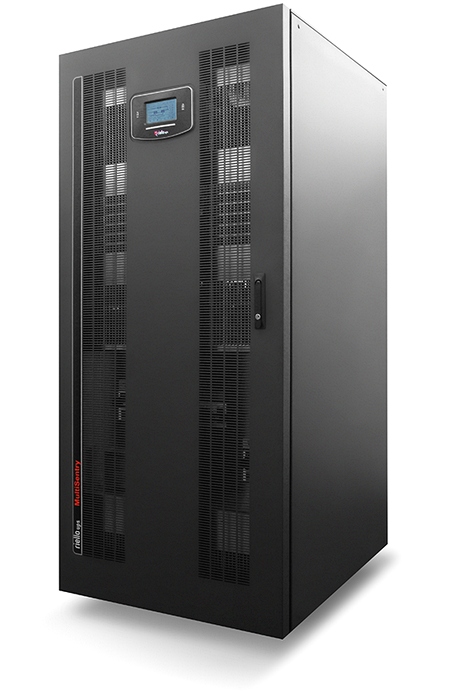

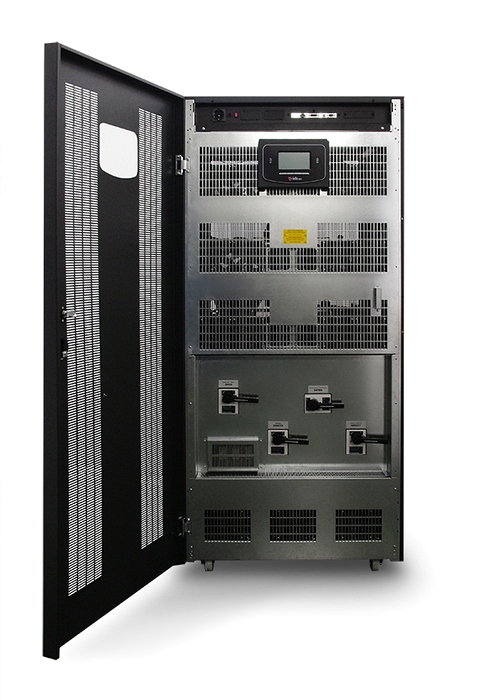

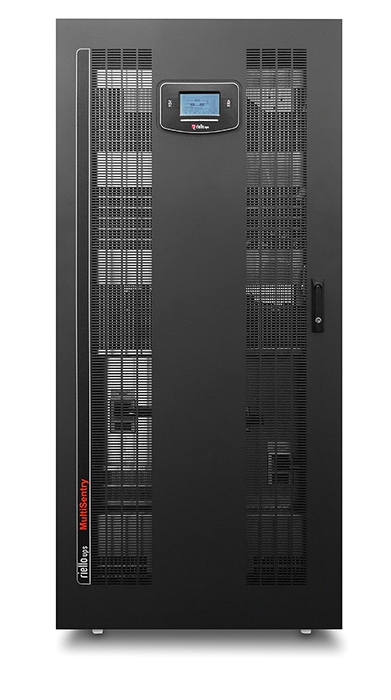

A transformerless UPS offering you high efficiency in a compact footprint, the Multi Sentry is a superb solution for sites that have limited power, loads that generate harmonic currents, or where the UPS is supported with a generator.
Choose from 6 power ratings to suit your power needs. Designed to power capacitive loads like blade servers without any reduction in active power. Range of battery cabinet sizes depending on your runtime requirements.
Because 1 Size Doesn’t Fit All…

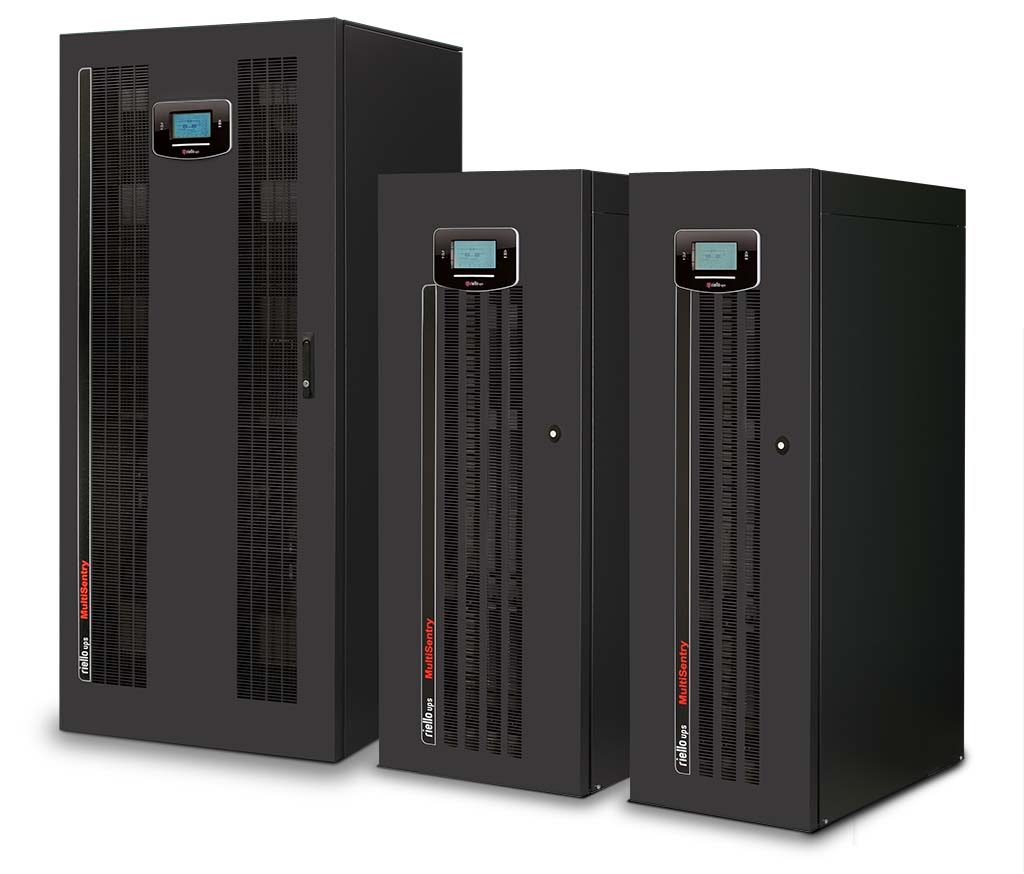

Multi Sentry is available in 6 power ratings (60-80-100-125-160-200 kVA) to suit your specific power requirements.
It’s a proven solution for protecting everything from small telecoms and ICT networks through to sizeable data centres.
Zero Impact On Power Source
Whether the input is the mains or a generator, the MST has zero impact. It ensures an input power factor (pf) of 0.99 and low current distortion (< 2.5%), while it deploys a power walk-in function that ensures progressive rectifier start-up.
The MST also offers filtering and power factor correction in the network upstream of the UPS.
Developed using advanced transformerless technologies including a 3-level inverter and fully-controlled IGBT rectifier, the MST delivers you high efficiency of up to 96.5%, with a flat efficiency curve that minimises waste even at partial loads.
Parallel a maximum of 8 MSTs together to scale up your power or build in redundancy (N+1).
Parallel configurations run on a closed-loop system, guaranteeing continuous operation even if there’s an interruption to the connection cable.
The MST enjoys one of the most compact footprints in its category, meaning it’s an ideal choice if you’ve got restricted space or under commercial pressure to optimise your floor space.
