Current Range: 32 - 120 A
1:1

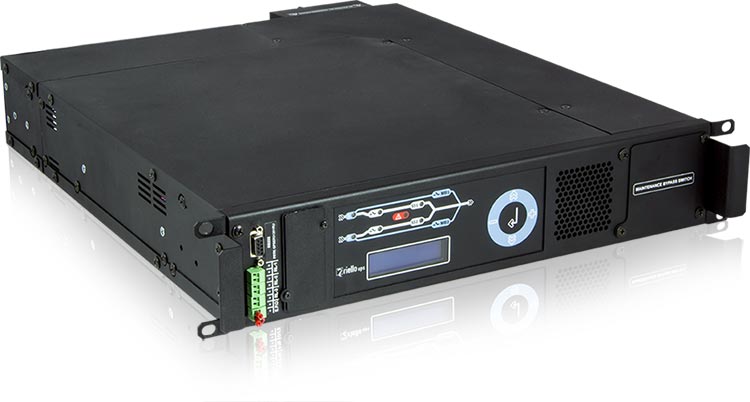

1-phase static transfer switch



Master Switch Single-Phase is a transfer switch designed to protect loads with different power ratings. Choice of 3 sizes (32A, 63A, and 120A) and with a manual bypass to easily switch sources in the event of a fault.



Complete Diagnostics

Features an LCD control panel with multi-functional keys. This enables you to monitor readings and switch operating statuses quickly and intuitively. Incorporates 3 dry contacts, RS232 port, and a communications slot to allow for further LAN connection.

Load Protection

Guaranteed switching time of less than a quarter of a cycle (< 4 msec for synchronised inputs; < 10 msec for non-synchronised). This is the case for both automatic and manually-triggered switches.

Master Switch Monofase MMS

HIGHLIGHTS

  • Available in 3 sizes (32 A, 63 A, and 120 A)

  • Protects single-phase loads with different power ratings

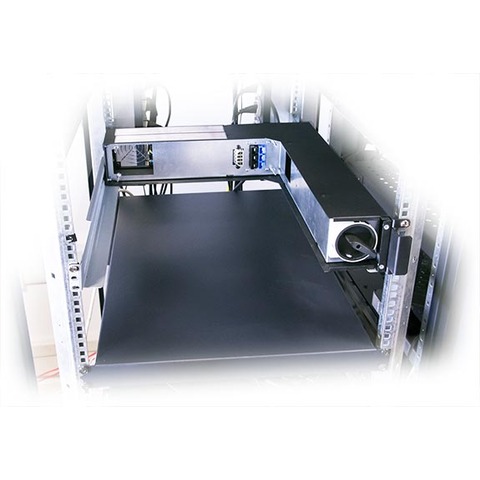

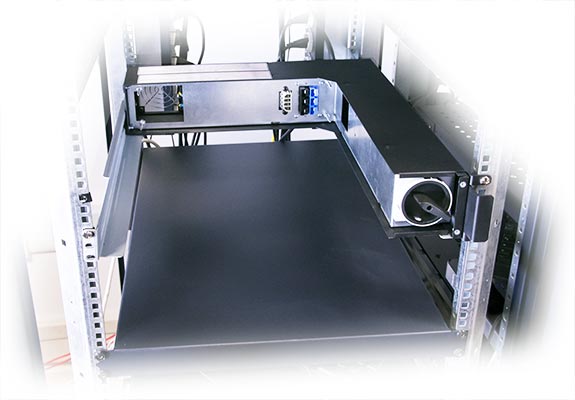

  • Fitted with a manual bypass to easily switch power sources in case of fault

  • Simple plug and play installation

  • Connectivity slot enables LAN connection and remote management

Brochures and data sheets

Select File Language:

Master Switch STS Single-phase

32-63-120 A Static Transfer Switch

en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh
Technical specifications of the model

Static transfer switch available in 3 sizes (32A, 63A, and 120A) and designed to protect 1-phase loads with different power ratings.

Features a manual bypass that enables even non-technical staff to easily switch between 2 independent power sources in the event of a supply failure.



Complete Diagnostics

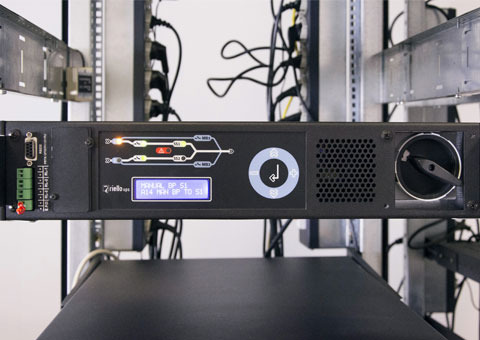

Master Multi Switch features a 32-character LCD display and a control panel with multi-functional keys. This enables you to monitor readings and switch operating statuses quickly and intuitively.

Incorporates 3 programmable dry contacts, RS232 serial connection port, and a communications slot to allow for further LAN connection as well as remote monitoring and control.



Load Protection

In the event of a fault, MMS guarantees switching time between the 2 power sources of less than a quarter of a cycle (< 4 msec for synchronised inputs; < 10 msec for non-synchronised). This is the case for both automatic and manually-triggered switches.

Microprocessor control and the use of thyristor static switches ensure continuous monitoring of the power supply sources and reduced switching times between the two sources in the event of a fault.
