Current Range: 16 A
1:1

1U power distribution unit



Multi Socket PDU offers an efficient and reliable means to distribute AC power from a 16A single source to a maximum of 8 outputs. Designed for rackmounted installation in 19-inch cabinets.



Easily Monitor And Manage Rack Environments

Incorporates a simple LCD display with icons clearly indicating the status of each output. If the icon is illuminated, the output is receiving power, if it isn’t the output isn’t receiving power. Flashing icons indicate an overload.

User-Friendly Features

Compact 1U PDU incorporates a manual bypass switch, USB and RS232 comms ports, and an expansion slot for additional communications boards. Easily set voltage and current thresholds for the input, as well as a maximum current level for the output.

Multi Socket PDU
Multi Socket PDU details

HIGHLIGHTS

  • Distribute AC power from a single source to a maximum of 8 outputs

  • Input current of up to 16A with maximum output current of 4A per socket

  • LCD display shows the status of each output

  • Connectivity slot enables LAN connection and remote management

  • USB and RS232 communications slots

Users Guides

Select File Language:

User's manual Multi Socket PDU

en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh

Brochures and data sheets

Select File Language:

Multi Socket PDU

16 A

en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh
Technical specifications of the model

Multi Socket PDU is a high-performing and compact 1U power distribution unit that supplies AC power to up to 8 connected devices from a single source.



Easily Monitor And Manage Rack Environments

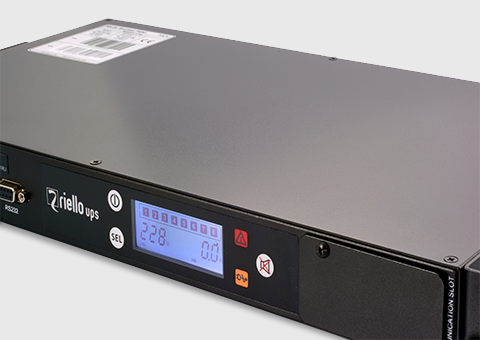

Multi Socket PDU incorporates a simple LCD display panel with 8 icons clearly indicating the status of each output. If the icon is illuminated, that indicates the output is receiving power, if it isn’t the output isn’t receiving power.

Flashing icons indicate an overload. The panel also shows real-time operating data such as the input voltage and current.



Best In Class Power Distribution

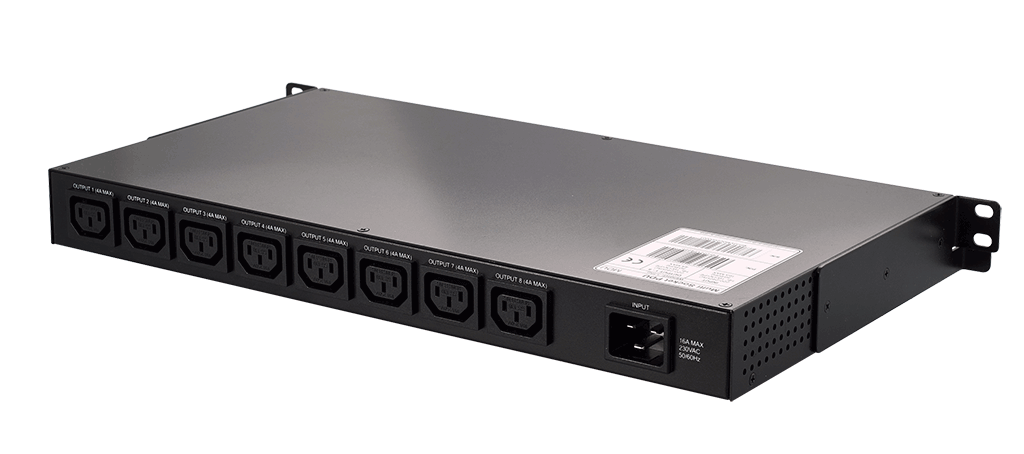

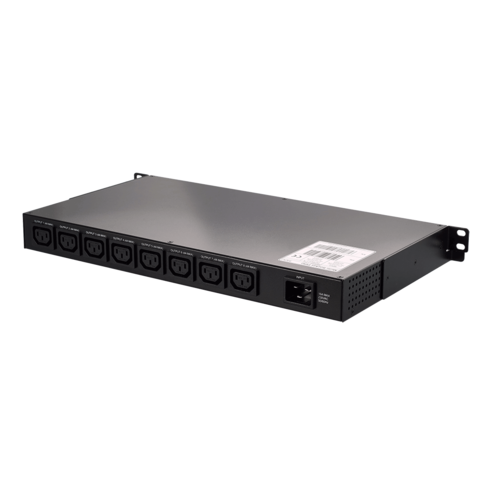

Provides power to 8 IEC sockets (maximum 4A output per socket) from a single 16A power input. You can easily set voltage and current thresholds for the input, as well as a maximum current level for the output.



User-Friendly Features

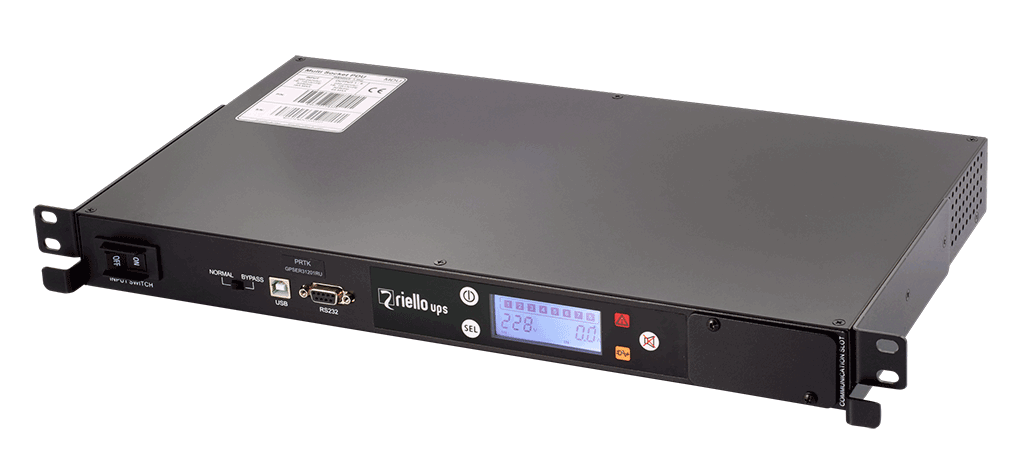

Compact 1U rackmounted PDU incorporates a manual bypass switch, USB and RS232 comms ports, and an expansion slot for additional communications boards.
