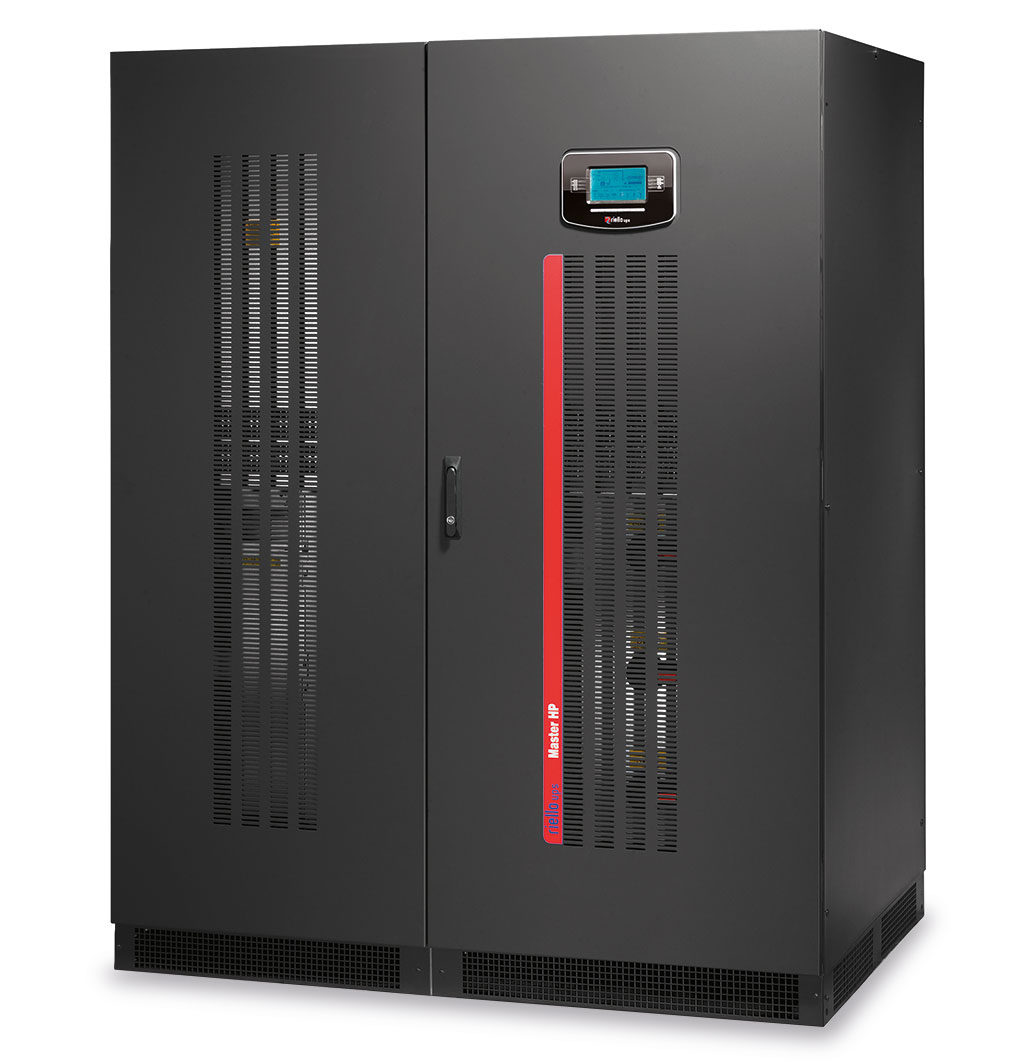

Master HP (MHT) is a three-phase UPS designed to back up data centres and other mission-critical settings such as industrial environments, telecommunications networks, and sensitive electro-medical devices.
Scalable Solution
MHT offers the scope for multi-megawatt installations by enabling systems of up to 8 (distributed parallel) or 7 (centralised parallel) UPS. Hot System Expansion enables you to add UPS without transferring to bypass.
Galvanic Isolation
Incorporates an output isolation transformer that ensures complete galvanic isolation between the load and the DC battery power source. Master HP delivers up to 95.5% efficiency in ONLINE mode, comparable to many transformer-free solutions.
Choice of 9 power ratings
94.5% operating efficiency (ONLINE mode) reduces energy waste
Parallel up to 8 (distributed) or 7 (centralised) for extra capacity or redundancy
Efficiency Control System optimises efficiency in parallel installations
Automatically selects most efficient operating mode based on mains quality
Ensures galvanic isolation
Enhanced battery care system ensures maximum battery lifespan
Step Up/Step Down converter reduces ripple current
Master HP combines maximum power availability with high efficiency in critical applications including data centres and industrial environments.
Choose from 9 power ratings (100-120-160-200-250-300-400-500-600 kVA), while it’s easy and efficient to scale up power in distributed or centralised parallel installations.
Incorporates an output isolation transformer that ensures complete galvanic isolation between the load and the DC battery power source. Smart Grid-ready solution able to communicate with the wider electricity network.
MHT offers the scope for multi-megawatt installations by enabling systems of up to 8 (distributed parallel) or 7 (centralised parallel) UPS.
Add UPS into an existing system without having to transfer to bypass (Hot System Expansion), while our intuitive Efficiency Control System guarantees optimum performance even at lower loads. This switches off some units and shares the load between the rest so they operate at higher overall efficiency.
Step-Up/Step-Down converters reduce the amount of ripple current. Other features designed to lengthen battery lifespan include deep discharge protection, voltage compensation depending on ambient temperature, and a variety of recharging methods.
Master HP delivers high efficiency of up to 95.5% in ONLINE mode, comparable to many transformer-free solutions.
In addition, Smart Active functionality automatically chooses the most efficient operating mode depending on the quality of the mains input.
A separate static bypass cabinet (MSB) is available for centralised parallel systems of up to 7 UPS. The bypass comes in a choice of 4 power ratings (800-1200-2000-3000 kVA).
