Reliable power for a sustainable world

Power Range: 10 - 200 kVA
3:3 3:1

For systems powered by generators or MV/LV transformers



Master MPS (MPM) is a robust and reliable UPS offering online double conversion protection in mission-critical applications such as data centres, telecoms networks, security systems and electro-medical devices.



Broad Range Of Solutions

Available in 11 power ratings and 3-phase input, 1-phase output or 3-phase input and output. A proven choice for installations where generators or MV/LV transformers supply the UPS. Eliminates harmonics and offers essential power factor correction.

Simple Scalability

Parallel 8 UPS together for increased power or battery autonomy. Possible to parallel models with different power ratings, while Hot System Expansion (HSE) enables you to add UPSs into an existing installation without switching to bypass mode.

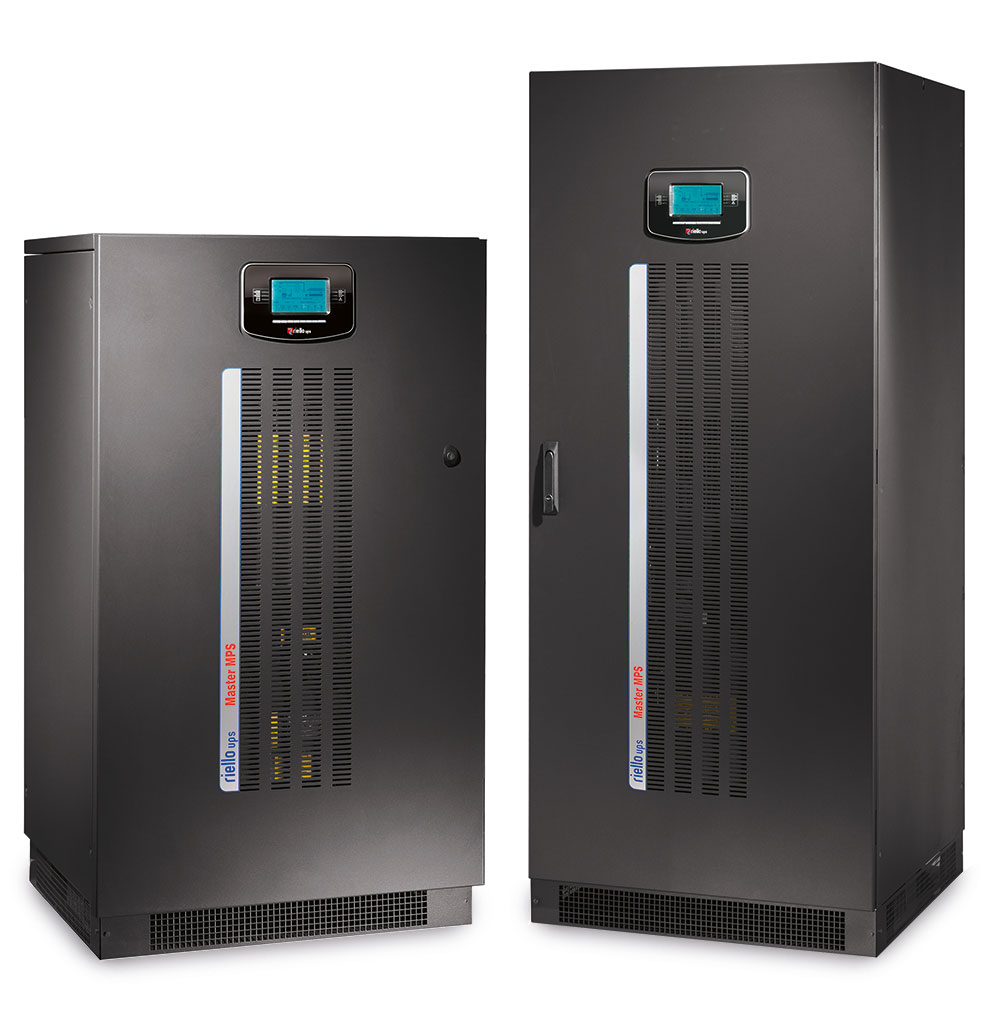

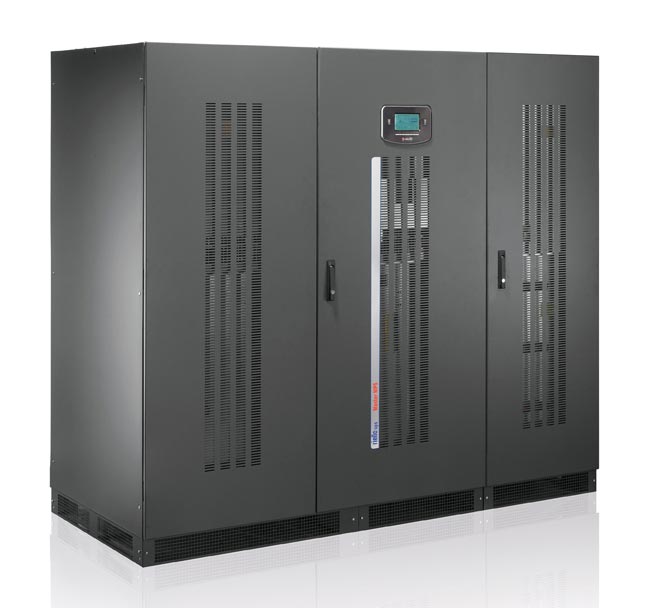

Master MPS range

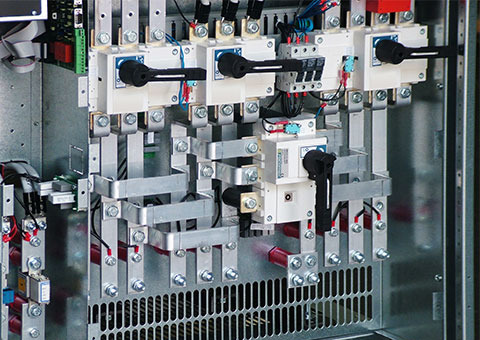

Master MPS details

HIGHLIGHTS

  • Choice of 11 power ratings

  • Ideal for systems powered by generators or MV/LV transformers

  • Designed to handle capacitive loads

  • 3-phase input, 1-phase output (10-100 kVA); 3-phase input/output (10-200 kVA)

  • Parallel up to 8 UPS for extra capacity or redundancy

  • Efficiency Control System optimises efficiency in parallel installations

  • Ensures galvanic isolation

  • Battery care system ensures maximum battery lifespan

Brochures and data sheets

Select File Language:

Master MPS

10-200 kVA

en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh
Technical specifications of the model

A versatile solution, the Master MPS is suitable for protecting a wide range of applications, including electro-medical devices, industrial processing machinery, security systems and data centres.

Available in 11 power ratings and 3-phase input, 1-phase output or 3-phase input and output. A simple and efficient choice for installations where generators or MV/LV transformers supply the UPS. Eliminates harmonics and offers essential power factor correction.



Broad Range Of Solutions

Master MPS is available in 3-phase input, 1-phase output from 10-100 kVA, as well as 3-phase input and output from 10-200 kVA.

All versions include a 6-pulse thyristor-based rectifier and the choice of optional harmonic filters (12-pulse rectifier available on 60-80 kVA models).



Simple Scalability

Parallel 8 UPS together for increased power or battery autonomy. Possible to parallel models with different power ratings, while Hot System Expansion (HSE) enables you to add UPSs into an existing installation without switching to bypass mode.



Optimum Efficiency In Parallel Systems

Intuitive Efficiency Control System (ECS) optimises power consumption in parallel installations. At low loads, it puts some UPSs into a “sleep” mode, sharing out the work between the remaining units.

This ensures the entire system runs at the highest possible efficiency. N+1 redundancy guaranteed at all times.
