Reliable power for a sustainable world

Power Range: 30 - 80 kVA
3:1

Ideal for harsh industrial environments



Master Industrial (MIM) is designed to withstand the vibrations, mechanical stresses and dust that are commonly found in harsh industrial environments such as manufacturing, petrochemical, and power plants.



Complete Galvanic Isolation

Input and inverter isolation transformers guarantee separation between the load and the batteries. Battery is sized to deliver 220Vdc voltage, the standard for industrial environments.

Fully Redundant Fans

Redundant ventilation system at up to 100% load ensures UPS runs at safe operating temperatures even if there’s an issue with any of the fans. Each fan is monitored individually and will alarm in the event of failure, ensuring swift replacement.

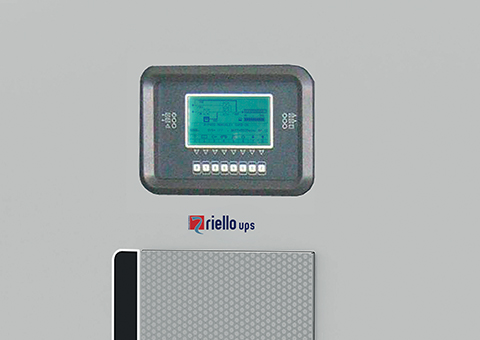

Master Industrial
Master Industrial details

HIGHLIGHTS

  • Choice of 4 power ratings

  • Battery designed to deliver 220Vdc voltage

  • Specially designed to handle harsh industrial environments

  • Ideal for applications such as manufacturing, petrochemicals, and electrical distribution

  • 94% operating efficiency (ONLINE mode) reduces energy waste

  • Handles high short circuit currents, so ideal for loads with high current peaks

  • Redundant fans even at 100% load

  • Input and output transformers ensure galvanic isolation

Brochures and data sheets

Select File Language:

Master Industrial

30-80 kVA DC BUS 220 Vdc

en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh
Technical specifications of the model

Master Industrial is our specialist uninterruptible power supply designed to provide maximum protection and power quality in settings such as power stations, manufacturing factories, and petrochemical processing plants.

It has a high short circuit current, which makes it ideal for loads that draw a high current during switch-on or normal operation, such as motors and industrial machinery.



Handles Harshest Conditions

Specifically designed to cope with vibrations, dust, and mechanical stresses that would pose problems and increase the likelihood of failure for standard UPS systems.



Full Galvanic Isolation

Input and inverter isolation transformers guarantee separation between the load and the batteries. Battery is sized to deliver 220Vdc voltage, the standard for industrial environments.



Fully Redundant Fans

Redundant ventilation system ensures UPS runs at safe operating temperatures even if there’s an issue with any of the fans. In addition, each fan is monitored individually and will alarm in the event of failure, ensuring swift replacement.
